DIN6796 Belleville spring which is also called a Belleville washer, disc springs, conical washer, coned-disc spring and etc..

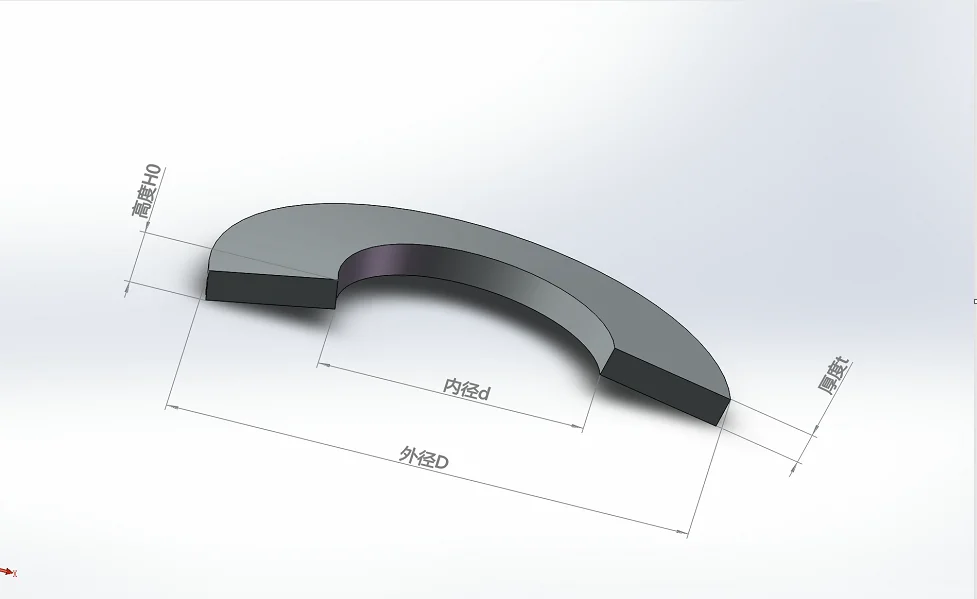

It is a washer which has a conical shape that produces spring characteristics when loaded axially. The term Belleville is derived from its inventor, Julian Belleville.

Disc Springs are unique and differ from other types of springs in that the force/deflection curves of Disc Springs are consistent and repeatable, and the minimum fatigue life can be reliably determined.

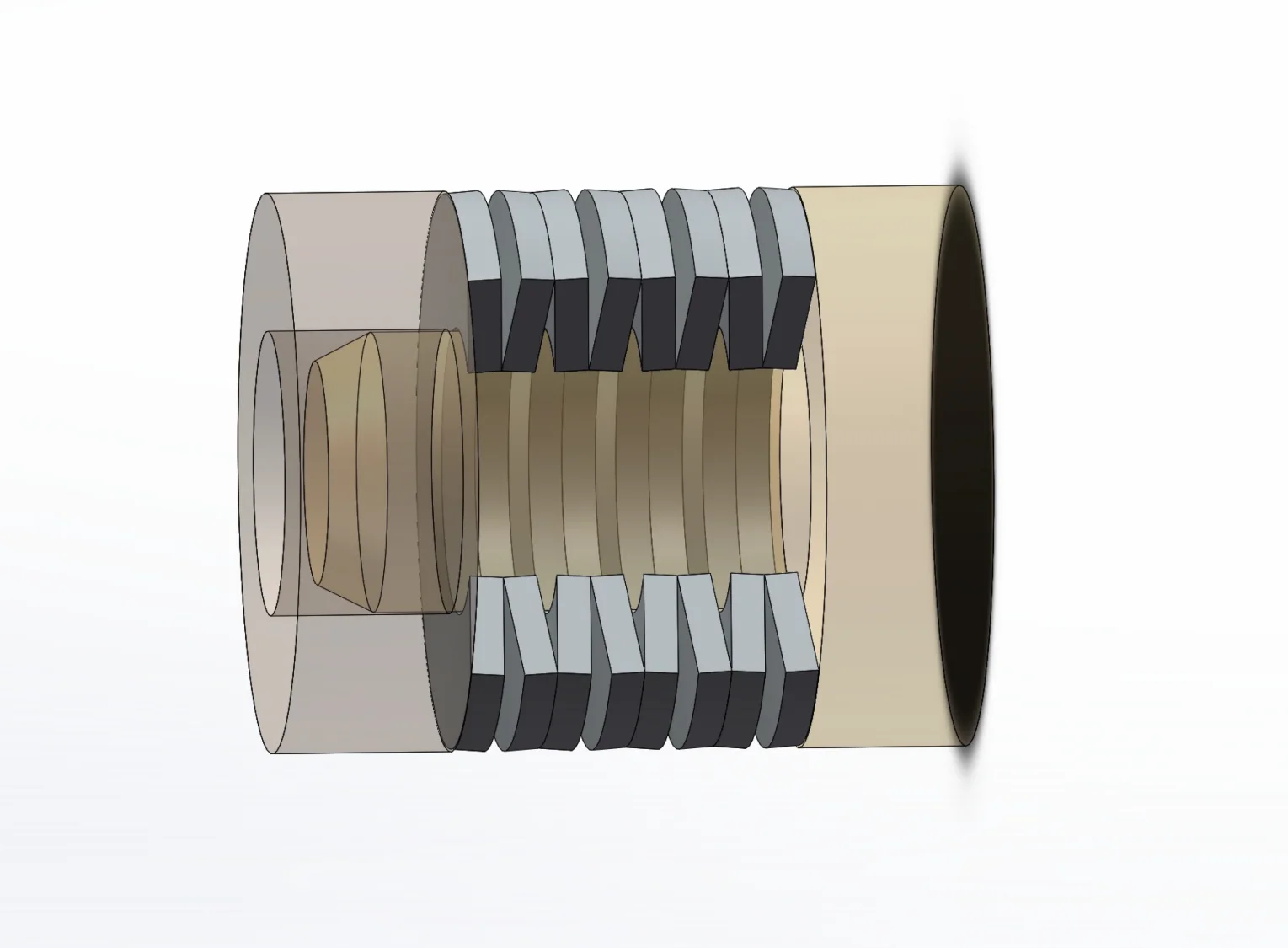

Disc Springs can be statically loaded either continuously or intermittently, or dynamically subjected to continuous load cycling. They can be used singly or in multiples stacked parallel,in series or in a combination thereof to achieve the desired force-deflection characteristic

Advantages

A wide range of load/deflection

characteristics

High load capacity with small deflection

Space savings - high load to size ratio

Consistent performance under design loads

Longer fatigue life

Inherent dampening especially with parallel stacking

Flexibility in stack arrangement to meet your application requirements

Finish

Black

Phosphate

Plated Zinc

Dacromet

Geomet

Delta

Mechanical zinc

Yellow Mechanical zinc

Raleigh Spring can also customize according to your special requirement.
