Industrial Fricition Spring

characteristics：

Advantages of Friction Springs

1．Large load, light weight, small size

2．The characteristic curve can be changed by selecting the number of rings

3．Linear characteristic curve

4．Overload protection feature when pressing and closing position

5．High damping capacity

6．The characteristic curve appears repeatedly with the compression return stroke, and the attenuation is small.

7．Easy maintenance, long life

8．Friction springs can be arranged in parallel with several spring groups of different specifications to achieve greater force, or arranged in series to achieve greater spring travel

9．Made of durable spring steel, friction springs can also withstand fire and heat that can destroy rubber products. In the event of a fire, simply re-lubricate the spring and it will be ready for use

零售价
0.0
元
市场价
0.0
元
浏览量:
1000
产品编号
数量
-
+
库存:
所属分类
return
1
产品描述
参数

PRODUCT DETAILS：

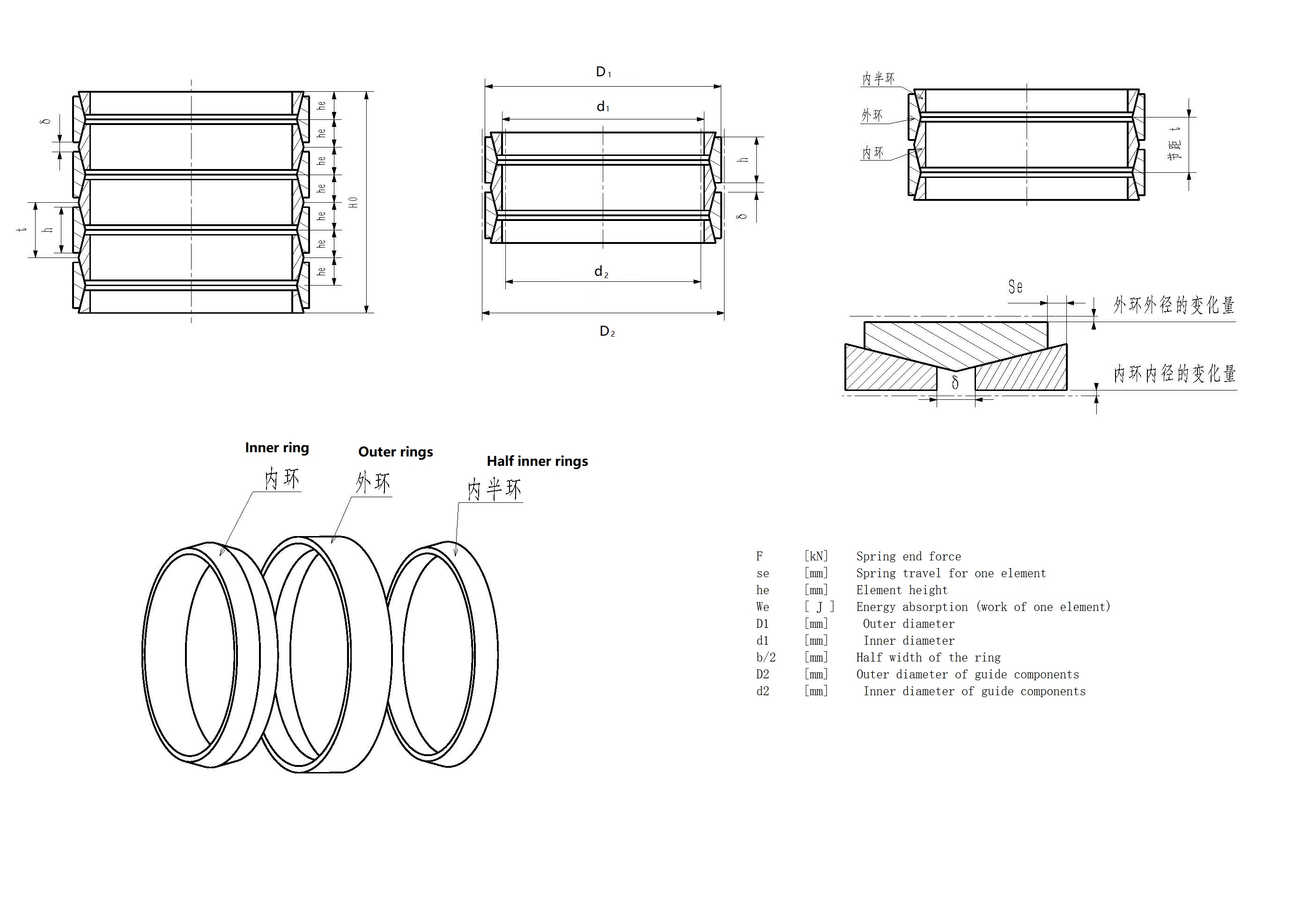

Friction Spring Symbols



D1

[mm]

 Outer diameter

外径


d1

[mm]

 Inner diameter

内径


b/2

[mm]

Half width of the ring

半簧高度


D2

[mm]

Outer diameter of guide components

外导向部件直径


d2

[mm]

 Inner diameter of guide components

内导向部件直径


se

[mm]

Spring travel for one element

一组摩擦面弹簧行程


he

[mm]

Element height

一组摩擦面高度


F

[kN]

Spring end force

弹簧端力


We

[ J ]

Energy absorption (work of one element)

能量吸收(一组摩擦面）




Specifications





基本尺寸 Diamensions导向Guide

载荷消耗功重量
D1d1b/2D2d2SeheFWeGe
Part No.TypemmmmmmmmmmmmmmkNJoulekg
Fral-001180018.114.41.818.713.90.42.2510.002
Fral-00225002520.82.525.920.10.63.192.70.004
Fral-003320032273.233.126.10.84145.60.007
Fral-00438003831.73.839.330.60.94.72090.012
Fral-005420042.234.64.243.633.415.226130.018
Fral-006480048.239.44.849.838.11.15.93418.70.026
Fral-007550055465.556.744.51.36.840260.035
Fral-00863006351.96.364.950.31.47.75437.80.056
Fral-00970007058.2772.156.41.68.665520.074
Fral-01080008067883641.89.883750.105
Fral-01190009075.5993732111001000.145
Fral-012100001008410103812.212.21251380.203
Fral-0131240012410212.4128982.6152002600.408
Fral-01413000130111.512.41341082.6151602080.376
Fral-01514000140116141441123172503750.568
Fral-01616600166134161701303.7203506480.869
Fral-01719600194155191991504.423.460013201.676
Fral-0182000019816218.52031573.922.45109951.57
Fral-01922000220174222251694.426.472015842.573
Fral-02026200262208212682024.825.886020643.415
Fral-02130000300250303062455.835.8100029005.51
Fral-02232000320263323262586.238.2120037207.06
Fral-02335000350288353562836.641.6140046209.18
Fral-02440000400330404073247.647.61800684013.56


Applications

Pneumatic Hammers,

Recoil Systems In Automatic Weapons,

Buffers In Railroad-Car Couplers,

Steel Mill/Rolling Mill End Stops,

Buffers For Ferry Boats,

Shock Absorbers For Heavy Industrial Doors,

Buffers For Crane End Stops.
